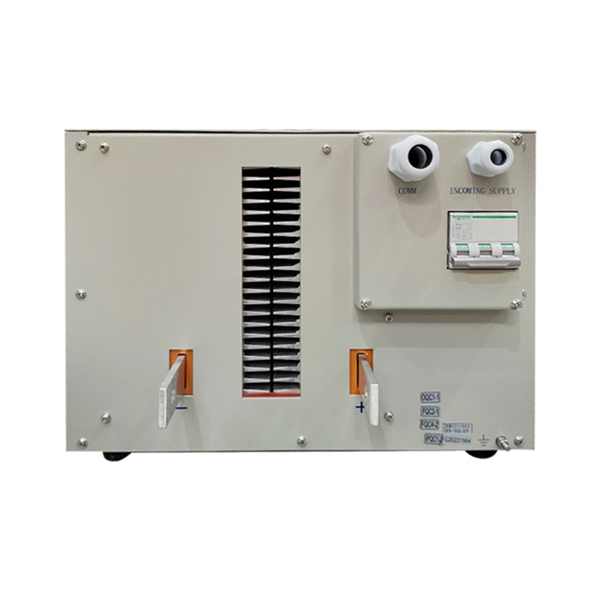

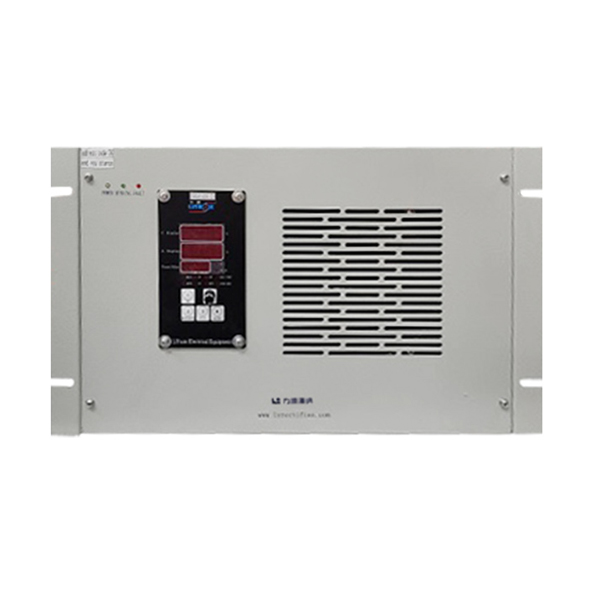

60V 180A DC Power Supply Rectifier Used in Electrolysis for Hydrogen

Overview of Hydrogen Electrolysis

The 60V 180A DC Power Supply Rectifier used in Electrolysis for Hydrogen provides the essential DC power for water electrolysis, and its reliability is crucial for the stable operation of the electrolyzer in green hydrogen production.

After the AC input voltage is filtered by the rectifier circuit, the high-voltage DC power is obtained. “Variable frequency conversion” can invert the high-voltage direct current into about 30 kHz high-frequency alternating current, which is then converted into the secondary voltage by a high-frequency transformer, and then filtered by the high-frequency rectifier circuit to obtain the required output voltage ​for hydrogen electrolysis.

Then, sampling of the output voltage and current is performed by the control circuit, and the signal of pulse width modulation (PWM) for controlling the inverter circuit is generated after closed-loop feedback to keep steady output voltage and current ​for hydrogen electrolysis.

Application of Hydrogen Electrolysis in Hydrogen Energy

Among various hydrogen-production methods, ​Hydrogen Electrolysis​ is widely used. The ​Power Rectifier​ primarily supplies DC power for the electrolysis reaction, producing hydrogen and oxygen from water.

The generated hydrogen has broad applications—refineries, fuel cells, ammonia/methanol synthesis, metal processing, food production, and electronics—with especial prominence in the vehicle industry.

Hydrogen Electrolysis​ is achieved by linking a ​Power Rectifier​ to the conventional power grid and coupling it with an electrolyzer. Alternatively, renewable sources (photovoltaic, wind, wave, biomass—termed ​Green Hydrogen​ when derived renewably) can also power the rectifier-electrolyzer system. An inverter mediates between hydrogen storage and the grid.

Core Advantage of Hydrogen Electrolysis

High efficiency, high regulation accuracy and stable output

The rectifier adopts multiple modules in parallel, with a small single module, low requirements for electronic components and low failure rate.

Multiple protection

The power supply has multiple protection functions such as overcurrent, phase loss, and over temperature.

Anti-corrosion, beautiful and long service life

The high-power rectifier basically overcomes the influence of eddy current heating of the large current magnetic field, so the loss is small and the service life is long.

Convenient installation

The circuit of the busbar is short, and the number of supporting points and joints of the busbar is small. Therefore, the installation is simple and convenient. During installation, construction personnel only need to stand on the concrete foundation platform to complete the installation of the power supply and busbar, without the need for scaffolding, and there is no risk of working at heights for construction personnel.

Products Solutions for hydrogen electrolysis

Our electrolytic hydrogen production rectification products offer a diverse range of solutions, including the SST Hydrogen Electrolysis Rectifier, IGBT Hydrogen Electrolysis Rectifier Series, Diode Rectification + IGBT Chopper Electrolysis Hydrogen Production Power Supply, DC – DC converter, Silicon – Controlled Rectifier for Hydrogen Electrolysis, and PWM + IGBT Chopper Electrolysis Hydrogen Production Power Supply.

With advanced design concepts and extensive experience in rectifier manufacturing, we are committed to providing both domestic and international users with the optimal power solutions and the most stable, efficient power supplies.

The Role of Rectifiers in Hydrogen Energy​

Rectifiers form the backbone of hydrogen production systems, directly impacting operational efficiency. By delivering tightly regulated DC power, they reduce energy waste in electrolysis and elevate hydrogen output. Their stable power delivery also ensures uninterrupted operation, a critical factor for large-scale industrial hydrogen generation.

Cooling Type for hydrogen electrolysis

Air Cooling: Heat dissipation fan + air duct + comb heat sink

Water Cooling：Built-in water circulation line

Products Parameters

Production Capability​

Liyuan Haina operates two production bases – one in Jiangxi, China, and the other in Thailand – with a total area of 53,000 square meters. This physical infrastructure supports our manufacturing operations through:

• Dual-location production: The China and Thailand facilities give us flexible manufacturing capacity and regional supply chain advantages.
• Dedicated R&D support: Three research centers develop process improvements that directly enhance our production efficiency.
• Integrated business units: Six subsidiaries handle key supporting functions that keep our manufacturing operations running smoothly.

Technical Capability

LIYUAN rectifier is the most competitive brand in China

Company relies on strong technology research and development cooperation basis, created a number of advanced technology, in recent 3 years amounted to more than 30 to apply for a patent, which has nearly 10 patents of invention.

Equipped with the national electric power transformation and control engineering technology research center (branch), and has set up a loan enterprise academician workstation.

Strict implementation of ISO quality management system, and through the CE safety certification, has been implementing ERP management for many years, to achieve the network, systematic computer control, the formation of a standard, efficient modern management system.

Qualification certification

Liyuan adhere to innovation and the continuous improvement of power conversion efficiency and product quality.

The increasing R&D investment every year, and cooperation with China’s well-known universities, we has established the research center of national electric power conversion and control engineering technology.

Especially the related core patents of high-power synchronous rectifier power supply, stay ahead of the whole industry in China.

The ISO 9001 quality management system has been fully implemented in Liyuan, including quality inspection of components in warehouse, production process inspection, and final product inspection.

We adopt advanced scientific quality management system and the most stringent testing methods in the whole process to ensure the stability and reliability of products.

Service

› Packing

1.Small size rectifier packing in carton box separately.

2.Large size rectifier will be packed in wooden case.

3.We guarantee that all the packing is intact when it reaches its destination.

› Shipping

1.30-45 Days after payment.

2.Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping

3.You may choose our shipping partner or your own partner.

› Maintenance

We are pleasant to share our theory and experience on equipment maintenance with users.

We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.

The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…

Need ​a​ 60V 180A DC power supply rectifier used in electrolysis for hydrogen? Liyuan Haina Rectifier is a professional manufacturer and supplier specializing in industrial rectifiers. With 27+ years of experience in R&D, production, and global technical services, we export to the United States, Sweden, Netherlands, Italy, Spain, South Africa, Russia, Germany, Japan, South Korea, Malaysia, etc. Our high-quality, Made-in-China rectifiers offer competitive pricing and customization options. Welcome to contact us.
